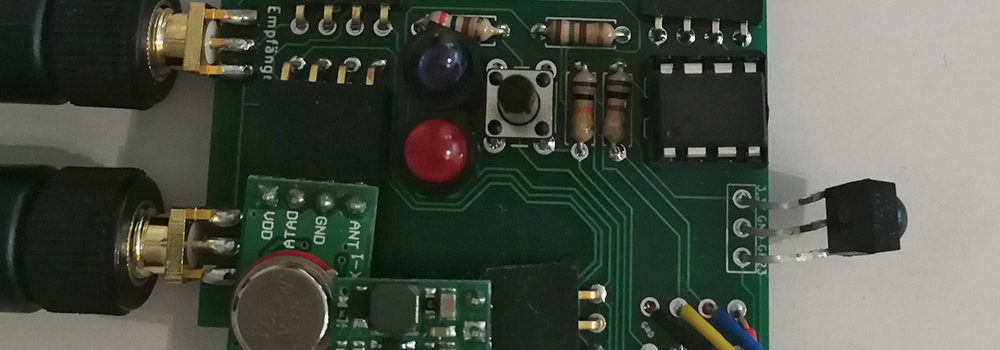

Raspberry Pi Pilight PCB

This PCB is inspired by the pilight PCB kit and supports the following components:

  • pilight 433 MHz sender and receiver
    • with ATTiny low-pass-filter
    • SMA antenna connectors
  • shutdown button
  • IR-Receiver
  • IR-Transmitter
  • Status LED

Futhermore I designed and printed a 3D case for mounting the PCB better reachable positions.
